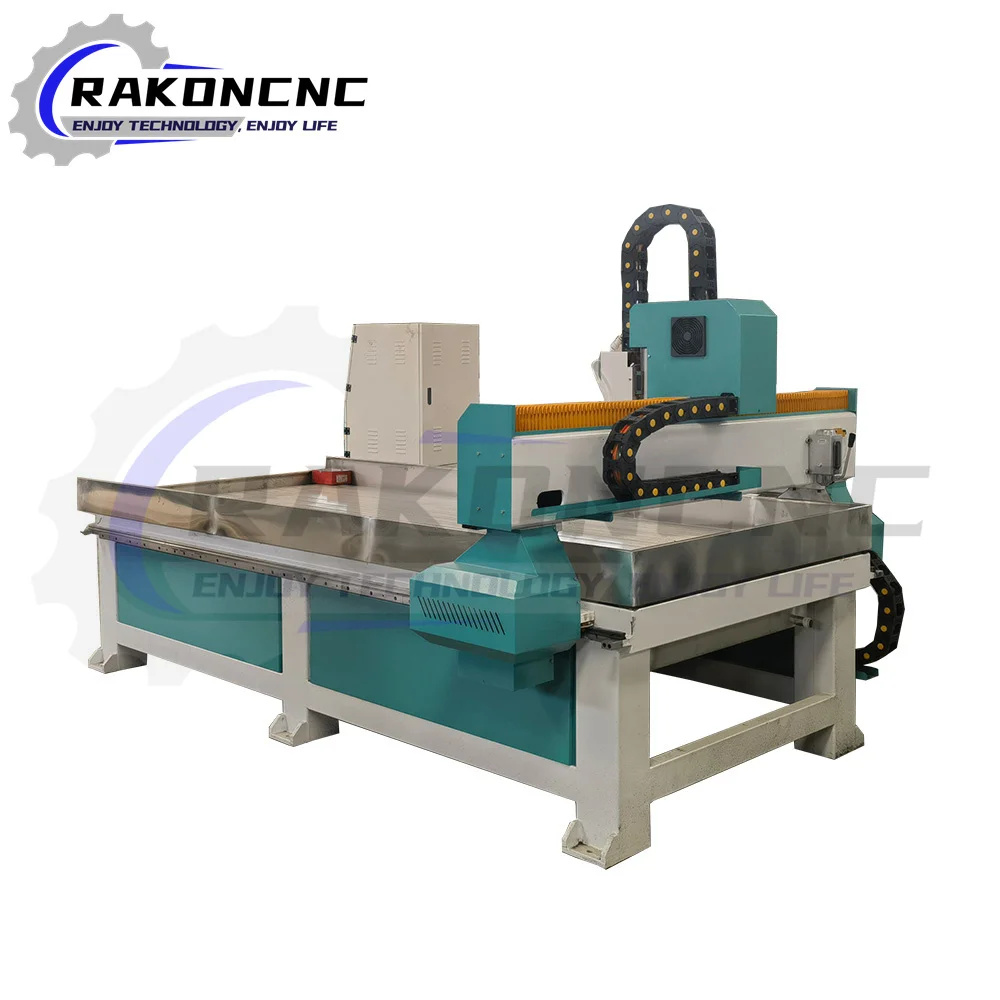

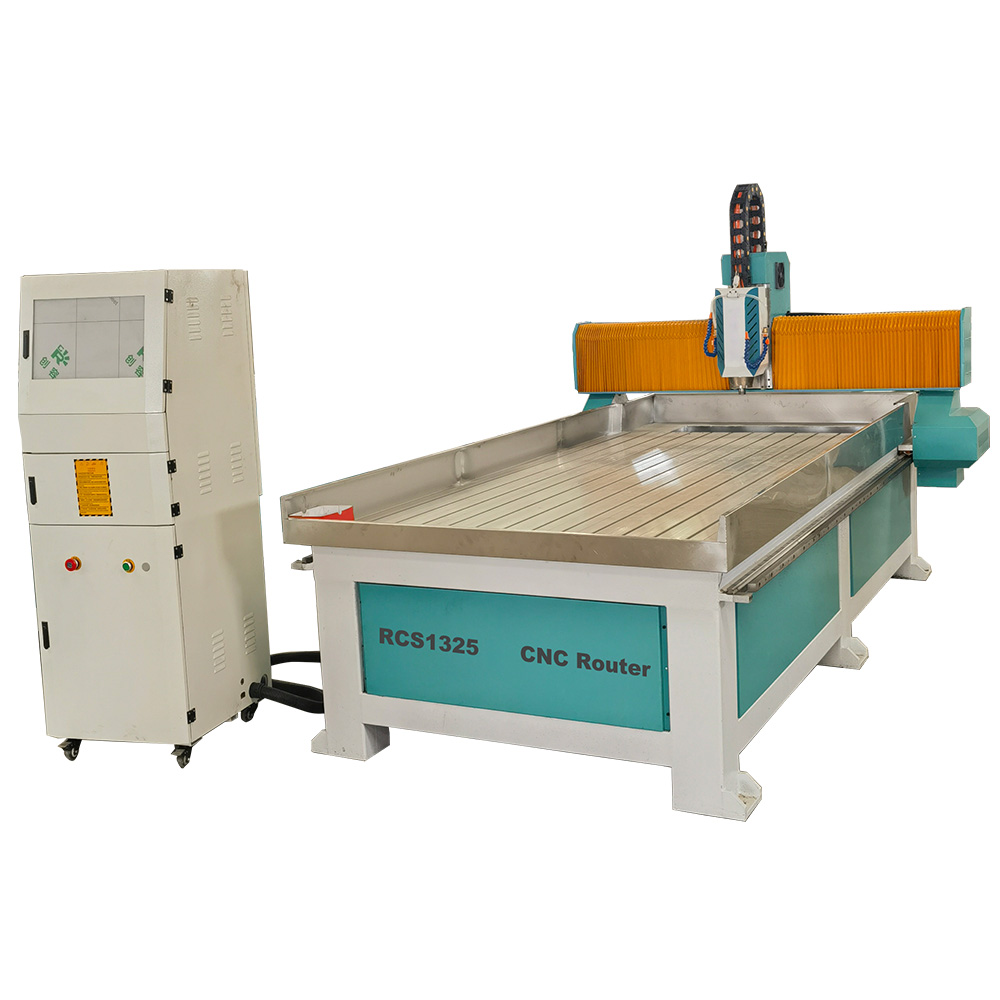

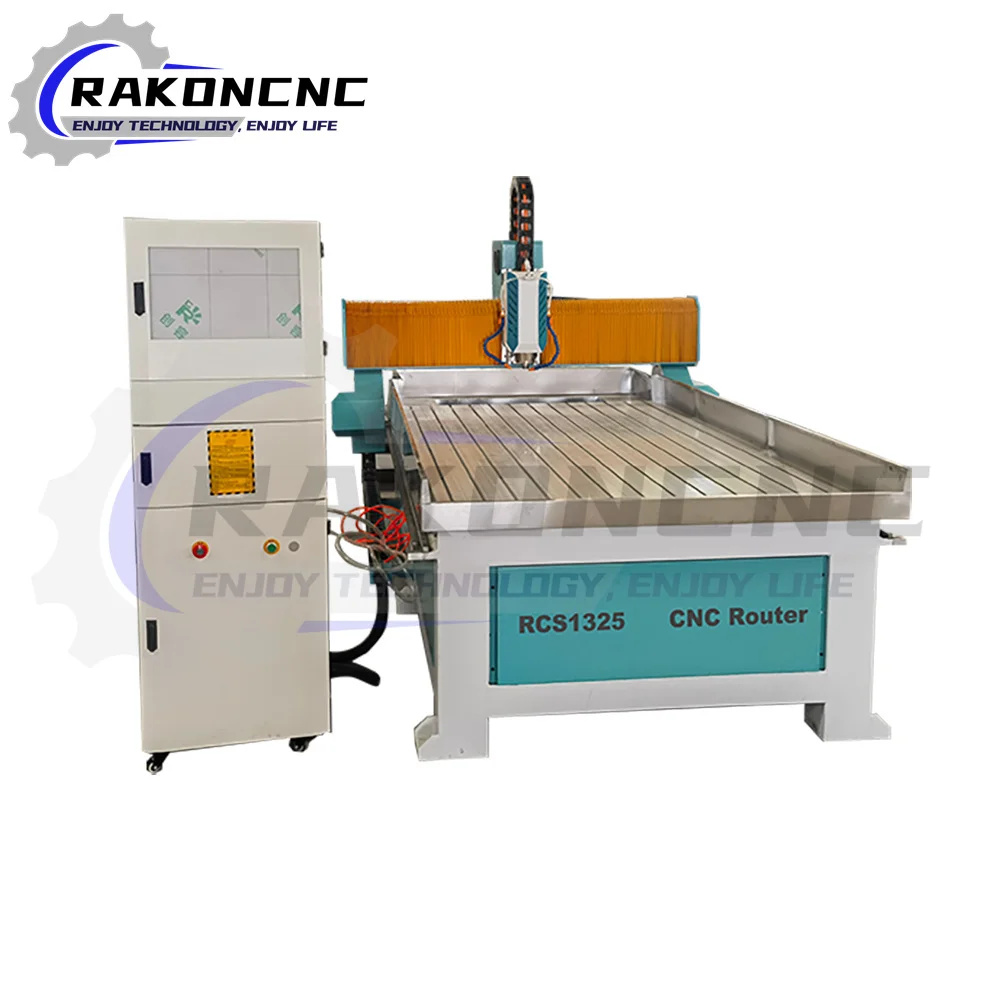

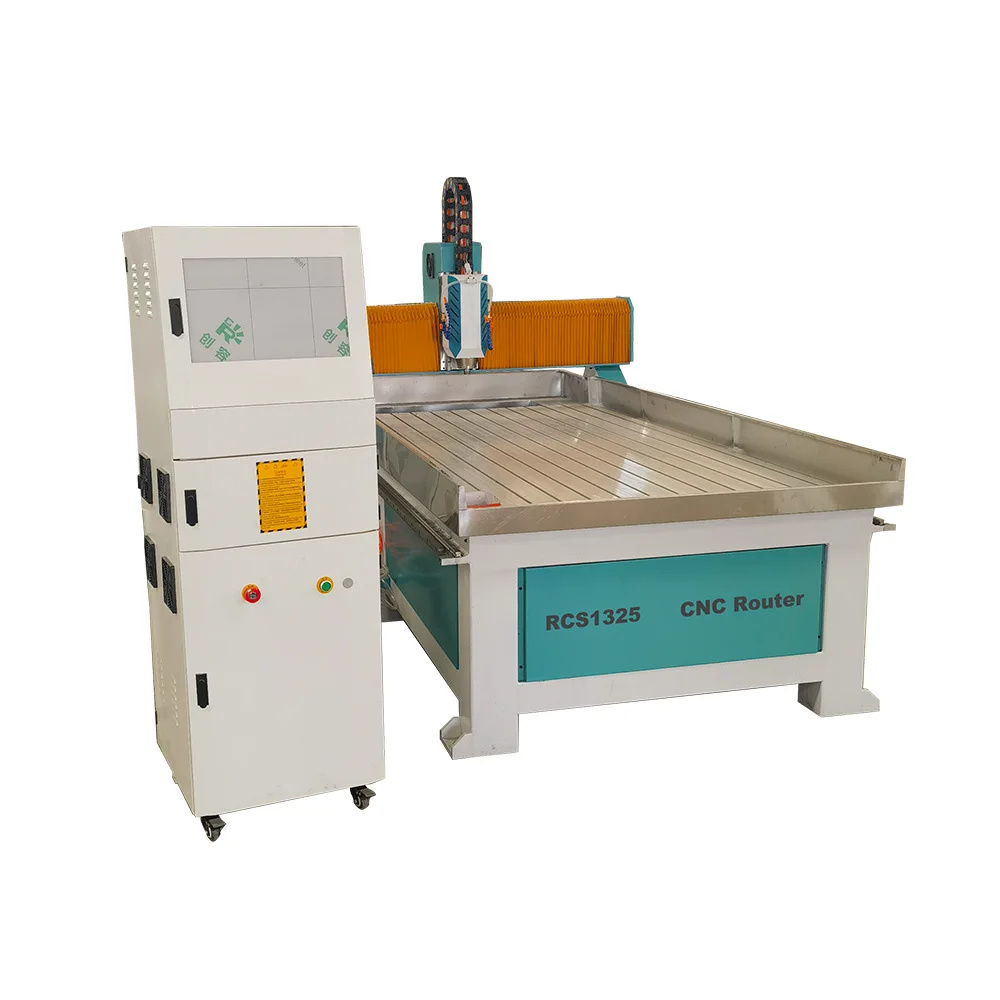

Economic 1325 Stone Working Cnc Router

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
Consult immediately
Reservation Now
Detail

Features:

  • 1. Integrally cast lathe bed, firm and non-deforming, high rigidity and high accuracy.
  • 2. Use servo motors .
  • 3. Memory function ensures the processing point when the blade is broken or having to postpone the process.
  • 4. With better compatibility, can math with many programs such as Typle3, artcam. It achieves 2D and 3D works easily.

Main parts:

Specifications:

Model

RCS1325

Working Area

1300×2500×200mm

  Frame Structure

   Welded steel structure

  Cooling method

   Water cooling and water tank

Spindle Motor

5.5kw water cooling spindle

Working Mode

Stepper motor（servo is optional),Motor XY axis 450B, Z axis 450C with wrapped brake

Control System

Nc studio controller, parallel interface

   Inverter

  BEST 5.5kw

   Transmission mode

  Helical Rack and pinion transmission on X Y axis,aiwan TBI ball screw transmission on Z axis

Table Surface

T-slot table

   Guide rail and slider

  Guide rail Taiwan TRV / Hiwin square rails

   Lubrication System

  Oil lubrication system

Rotating Speed of Spindle

2,4000rpm

Operating Voltage

220V/ 380v

Software

Type3, ArtCAM software

Packing Size

3100*2250*1850mm

Gross Weight

1000kg


Sample show:

  • 3D relief ,linear engraving and cutting Of natural marble,bowlder ,granite,artifical stone,tombstone,milestone,

    tiles,glass etc.Two-dimensional chamfering and drilling.
