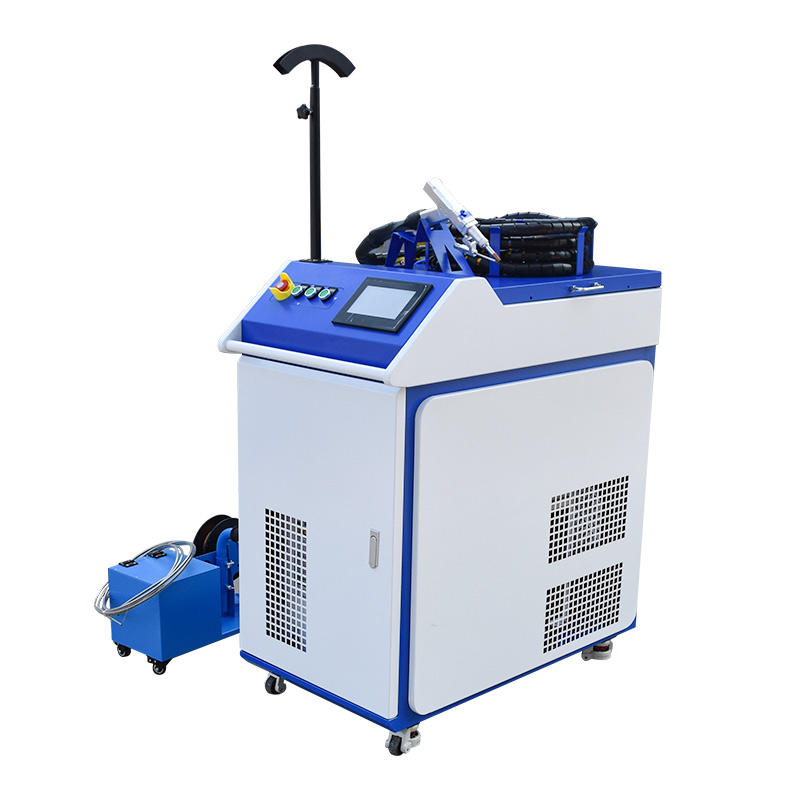

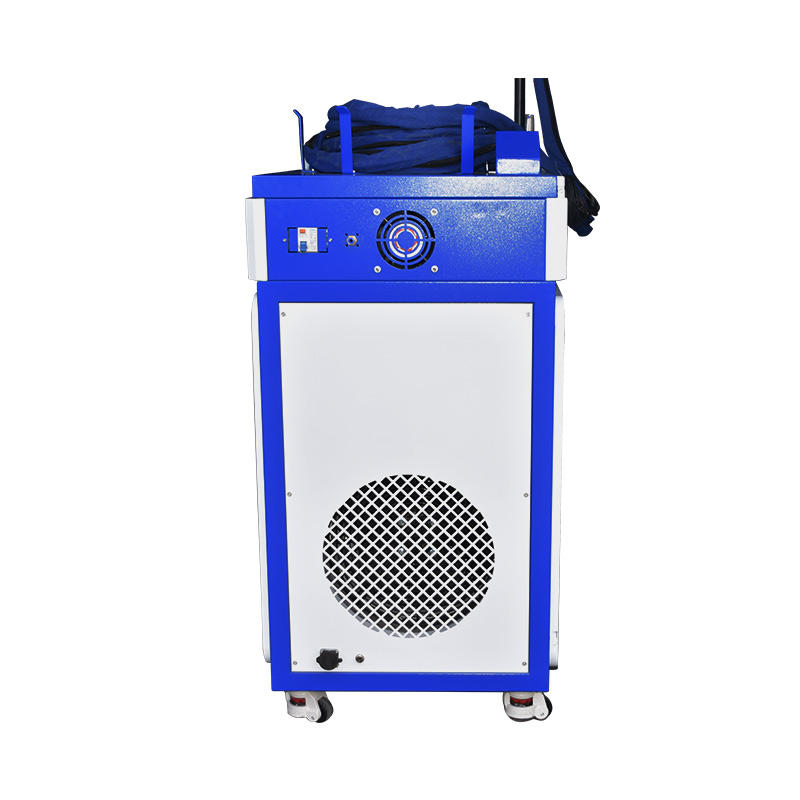

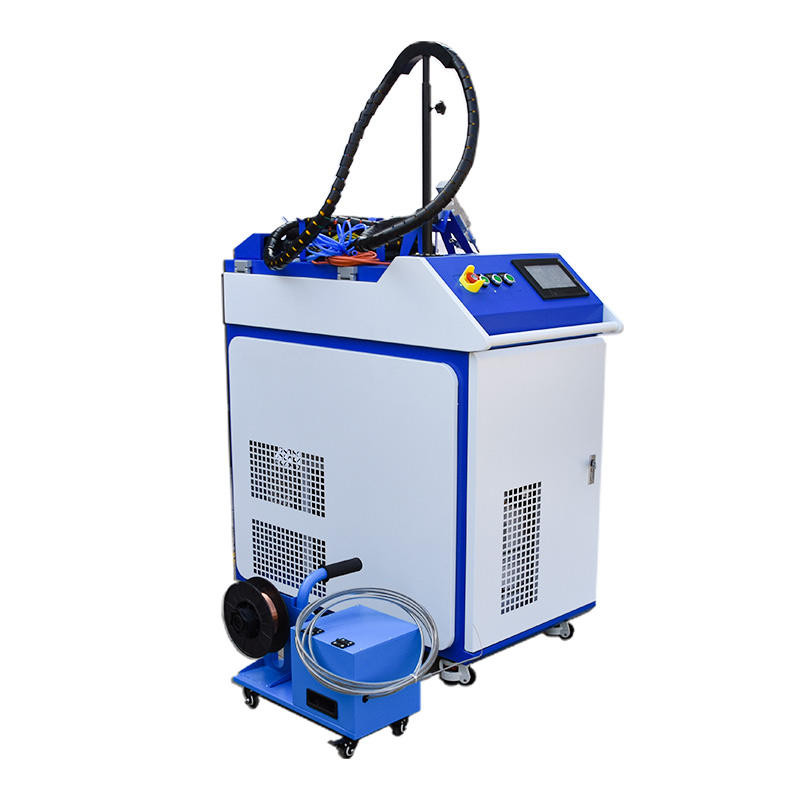

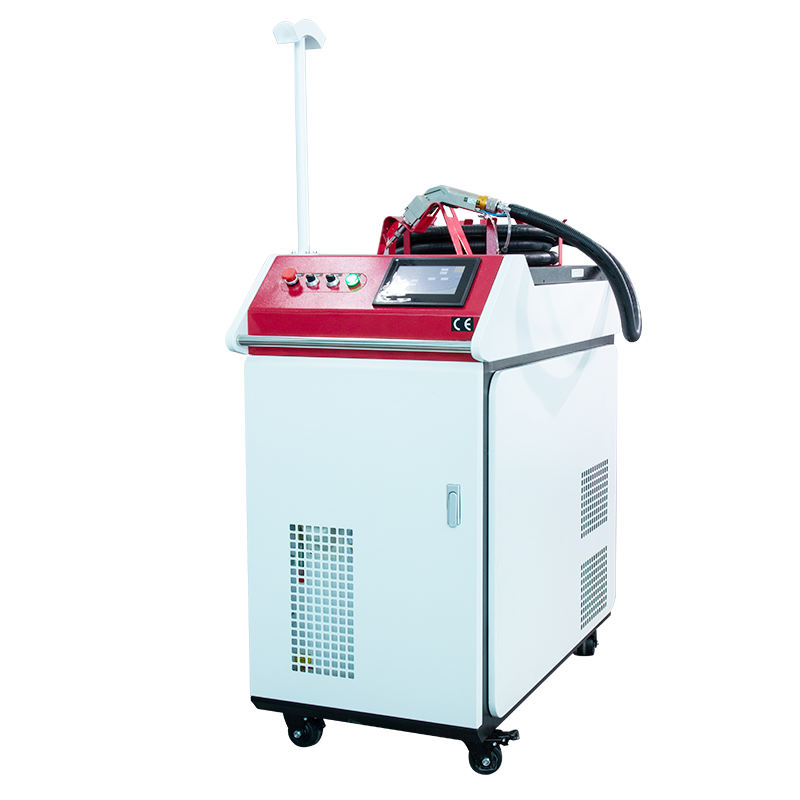

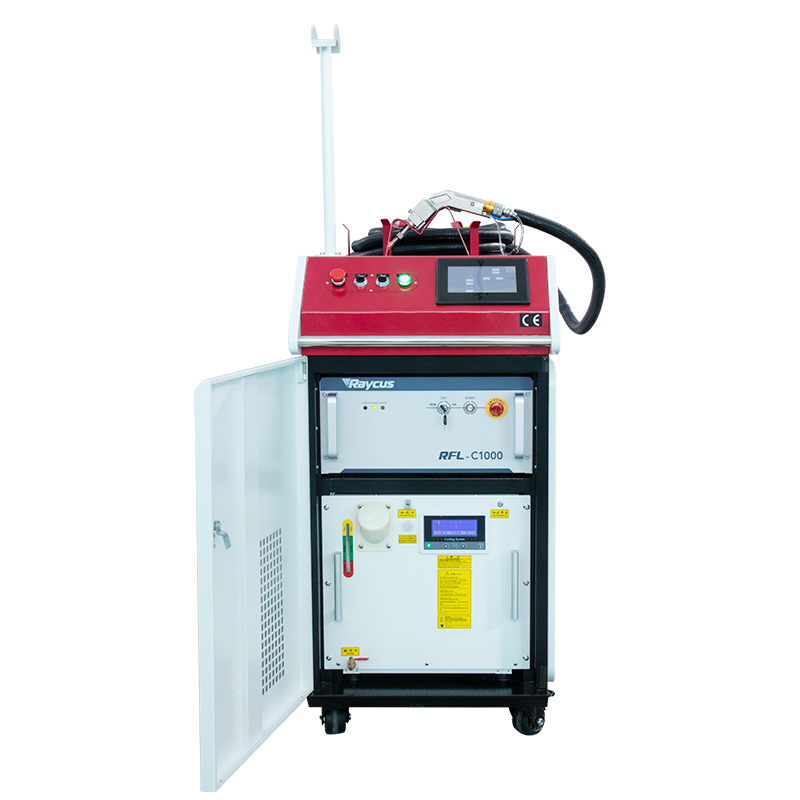

Laser Welding Machine 3000W


Features:

1. Fast and concentrated pulses with enormous power impact and gasification of residues on the surface;
2. Laser pulses are verysuitable for the removal of organic matter, such as residues in the tire mold fouling;
3. The impact of a short period of timewill not cause metal surface heating, no damage to the substrate.
4. Clean or remove the surface paint layer quickly and cleanly;
5. Accurate cleaning and paint removal effect;
6. No damage to the base material.


Applications:

RakonCNC laser welding machine Application in Stainless steel, Carbon steel, Aluminum, Copper materials, etc.
Beautiful weld, fast speed, no consumables, no welding mark, no discoloration, no need to polish later.

Can be configured with a variety of Angle nozzle to meet the welding needs of different products.

  • 1. It can weld a variety of metal plates and pipes, mainly suitable for welding stainless steel, gold, silver, copper, galvanized sheet, aluminum sheet, various alloy sheets, rare metals and other materials.

  • 2. Copper alloy surface patina cleaning, steel pipe surface oxide and pollutant cleaning, rail derusting.

  • 3. Widely used in advertising signs, hardware products, auto parts, craft gifts and other industries, can be used for welding carbon steel,stainless steel, titanium, aluminum and other metal materials.

Specifications:

Fiber Laser Welding Machine 3000W

NO

Description

Parameter

1

Model

RCW1000 / RCW1500 / RCW2000 / RCW3000

2

Laser Power

1000W / 1500W / 2000W / 3000W

3

Range of adjustable power

1-100%

4

Central wavelength

1064nm

5

Line length

Standard 10m, maximum support 20m

6

Way of working

Continuous/modulation

7

Speed range

0-120mm/s

8

Repeat precision

±0.01mm

9

Welding gap requirements

≤0.5mm

10

Cooling water

Industrial thermostatic water tank

11

Laser Type

JPT / Raycus / Reci / IPG / Max

12

Working humidity

<70% no condensation

13

Focal Spot Diameter

0.2-2mm

14

Welding depth

0.3 - 5mm

15

Pulse Frequency

0.1-100Hz

16

Voltage

220V/380V
