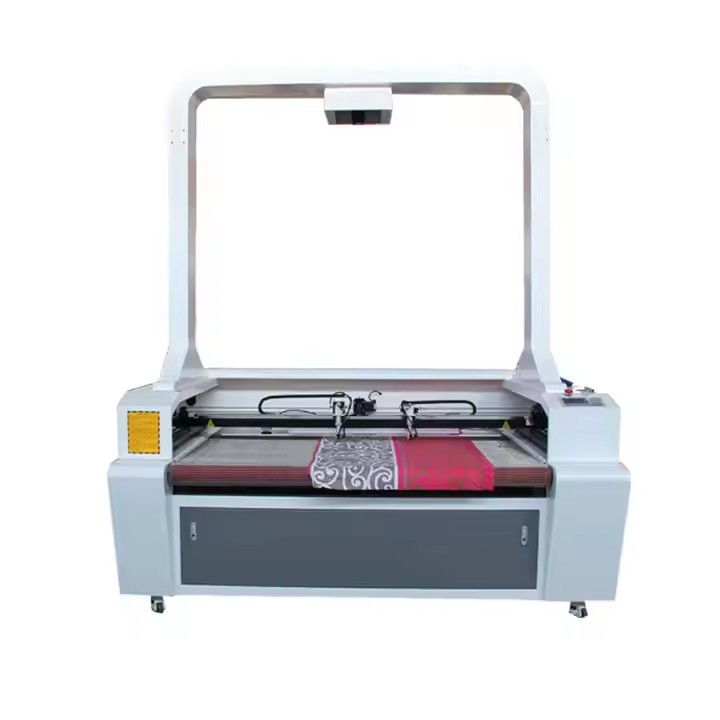

Co2 Laser Cutting Machine With CCD Camera


Co2 Laser Cutting Machine With CCD CameraCo2 Laser Cutting Machine With CCD CameraCo2 Laser Cutting Machine With CCD CameraCo2 Laser Cutting Machine With CCD Camera


1.Dual head auto feeding co2 laser leather fabric cutting machine adopt the auto-feeding system working table, used to cut soft materials in rolls automatically, especially suitable to the mass laser cutting and engraving of applique embroidery, textile, fabric,clothing,textiles, leather and other industries.


2.To fully support design software, such as CAD, Coreldraw, Photoshop, friendly man-machine interface, live close to the industry needs.


3.Auto feeding laser cutting machine is equipped with two laser cutting heads and auto feeding system, two heads working at the same time. The feeding system can load materials automatically which can save your labor force and cut the cost. This laser cutting systems is especially suitable for the mass processing of textile and garment.Save time, improve work efficiency, it can customize according to customer’s demand level.


SPECIFICATIONS
Processing area
1600*1000mm( OEM available )
auto feed cutting table
Yes
cutting Speed
0-18000mm/min
Camera
Canon
laser tube power
80W/100W/130W
Laser wave length
10.6um
Resolution ratio
0.025mm
Minimum shaping character
Chinese character 2mm/ letter 1mm
Resetting positioning accuracy
±0.01mm
Voltage
Ac220v/110v ±10%,50HZ/60HZ
Operating Temperature
0℃-45℃
Operating humidity
5%-95%
Graphic Format Supported
BMP,HPGL (PLT), DXF, G-CODE, DST,AutoCAD, CorelDraw, CAD CAM, AI, Photoshop
software supported
Coreldraw,AutoCAD,Photoshop.llustrator etc
lens
reflect lens(3pcs)+import focus lens(1pcs)
Driver Type
leadshine step motor
guide Rail
high quality mould rails
cooling system
S&A CW-5200
software
TROCEN/Ruida
Operate System
Win98/Win2000/WinXP/Win 7/vista
interface
LCD screen with USB interface
pass through doors
Allow to cut extremely long materials
Free Assistant equipment
exhaust-fan,air pump,industry chiller CW5200
Optional
One head/Dual heads same steps/Dual X rails
