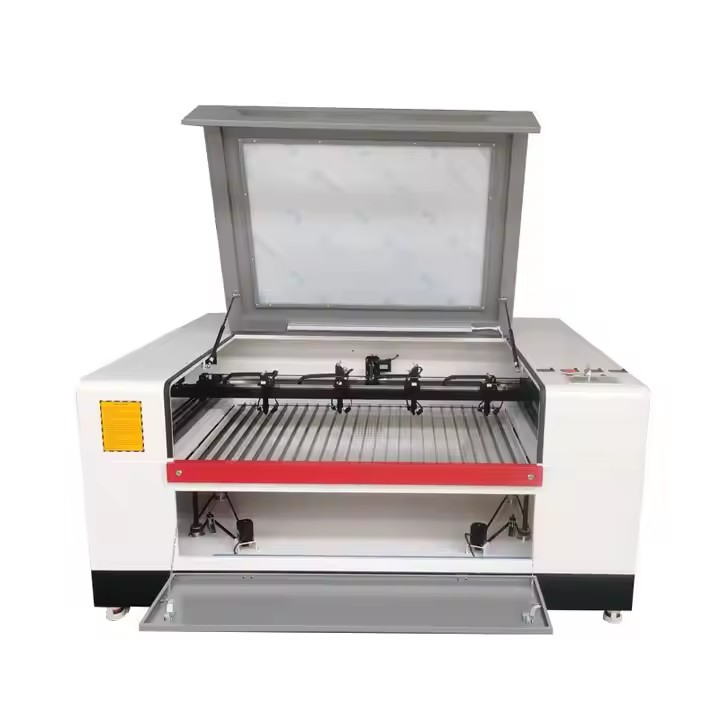

1390 4 Heads Laser Engraving Machine

Laser power

EFR tube ( 60w/80w/100w) or Reci w2 tube 100w

Controller

Ruida 6445G controller

Guide rail

Y-Axis double linear guide rail

Work table

Honey comb table +blade work table ( electrical up and down ,lifting distance 180mm )

  Main performance    parameters

Engraving speed

0-700mm/s

Cutting speed

0-100mm/s

Support Fils

BMP,HPGL,PLT,DST and AI etc.

Resolution

±0.05mm/1000DPI

Minimum Letter

English 1×1mm (Chinese Characters 2*2mm)

Position system

Red dot position

Other parameters

Power Voltage

AC 110 or 220V±10%,50-60Hz

Power cable

European Type/China Type/America Type/UK Type

Cooling way

Water cooling and protection system

Machine Size

2140*1520*1310mm

Gross Weight

400kgs

Package

Standard plywood case for export

Warranty

All life free tech support, two year warranty, except consumables

Air Compressor/Water Pump/Air Pipe/Water Pipe/Software and Dongle/ English User Manual/USB Cable/Power Cable
