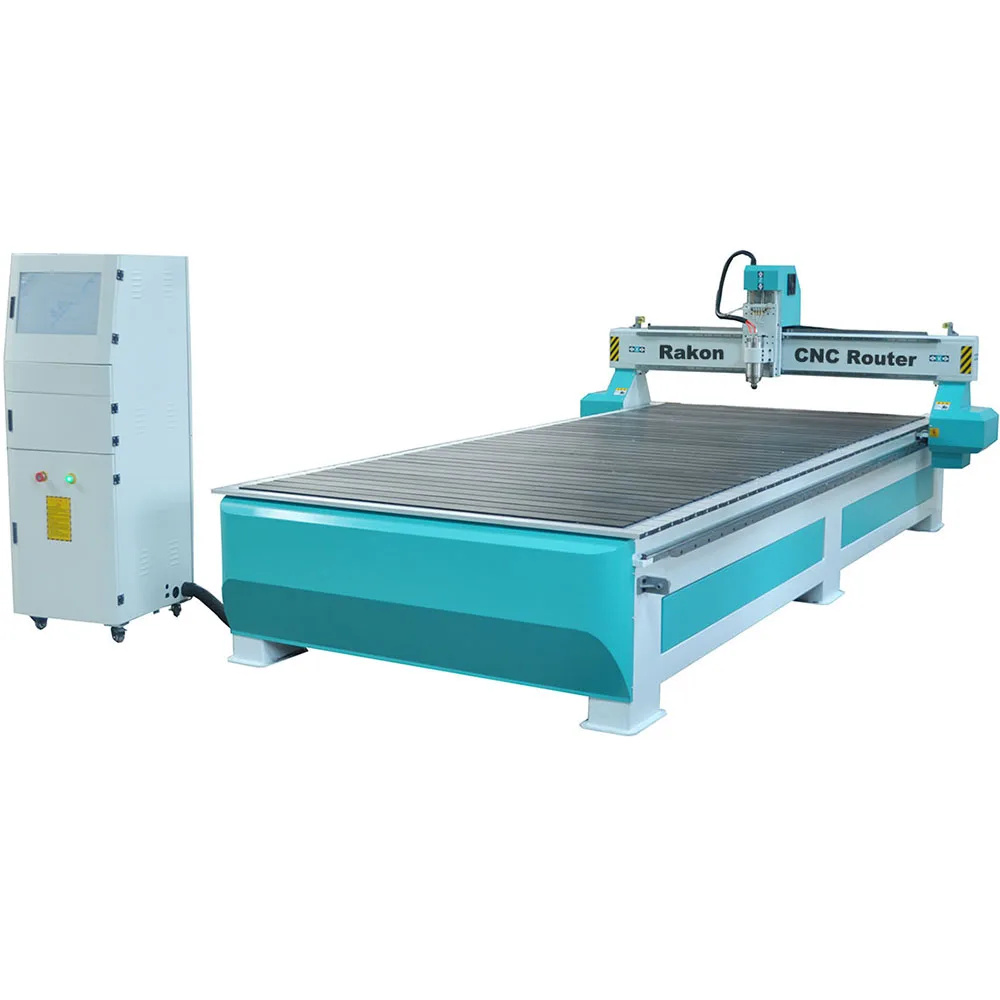

2030 2040 Wodoworking CNC Router Machine For Wood Plywood

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
Consult immediately
Reservation Now
Detail

Features:

1. High temperature tempering treatment, welded steel tube T type machine bed and gantry, high rigidity, bearing strength better.

2. Y axis with double Leadshine stepper motor and driver, moving stably.

3. Linear square guide rail with automatic oil lubrication device, ensuring long life time working ,reduce the time of machine maintenance.

4. China air or water cooling spindle, more powerful, low noise, not easy to break cutters,suitable for engraving and cutting work .

5. Square guide rail transmission for X Y-axis, ball screw transmission for Z-axis, ensuring the machine fast speed and higher precision.

6. Good software compatibility, with machine ,we provider Artcam ,Aspire ,Powermill etc .

7. Professional factory with Mach 3 control system,can provider good after sales service and technology support .

8. Vacuum table using high-density material with great suction strength, comfortably all sizes of work piece.

9. With rack and gear transmission ,it can have faster speed than ball screw machines.

Main parts:

Specifications:


Model

RCM2030

Working Area

2000×3000×200mm

Spindle Motor

3.2kw water cooling spindle

Working Mode

Stepper motor（servo is optional)

Control System

Nc studio controller, parallel interface

Drive Mechanism

Rack and pinion on x,y axis ,z axis ball screw transmission

Table Surface

T-slot table (vacuum table optional)

Frame

Seamless welded steel structure

Motion Positioning Accuracy

± 0.03/300mm

Repositioning Accuracy

± 0.05mm

Max Motion Speed

30,000mm/min

Max Engraving Speed

25,000mm/min

Rotating Speed of Spindle

2,4000rpm

Z-axis setting

Auto Z origin tool sensor

Dictate Format

G code, *.u00, *.mmg, *.plt

Operating Voltage

220V/ 380v

Software

Type3, ArtCAM software

Packing Size

3100*2250*1850mm

Lubrication System

Oil lubrication system

Gross Weight

1000kg


Applications:

1. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates,cup board doors, interior doors, sofa legs, headboards ,game cabinets, computer tables, sewing machines table, instruments etc.

2.Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making,blaster molding,and other advertising materials derivatives making

3. Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto

4. Moulding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.
5.Architectural models: engraving fine window, fencing and wall patterns, etc.

Application materials:

1.Wood: Plywood, Soft Wood, Hard Wood, MDF, Chipboard, etc.

2.Plastic: Acrylic, ABS, HDPE, PVC, UHMW, HDPE, etc.

3.Metal: Aluminium, Brass, Copper, etc,it needs extra cooling system .

4. Composite: Aluminium Composite, Copper Composite, Titanium, Composite, Zinc Composite, etc.

5. Plastics & Composites (ACP, ACM and solid surface material etc)
