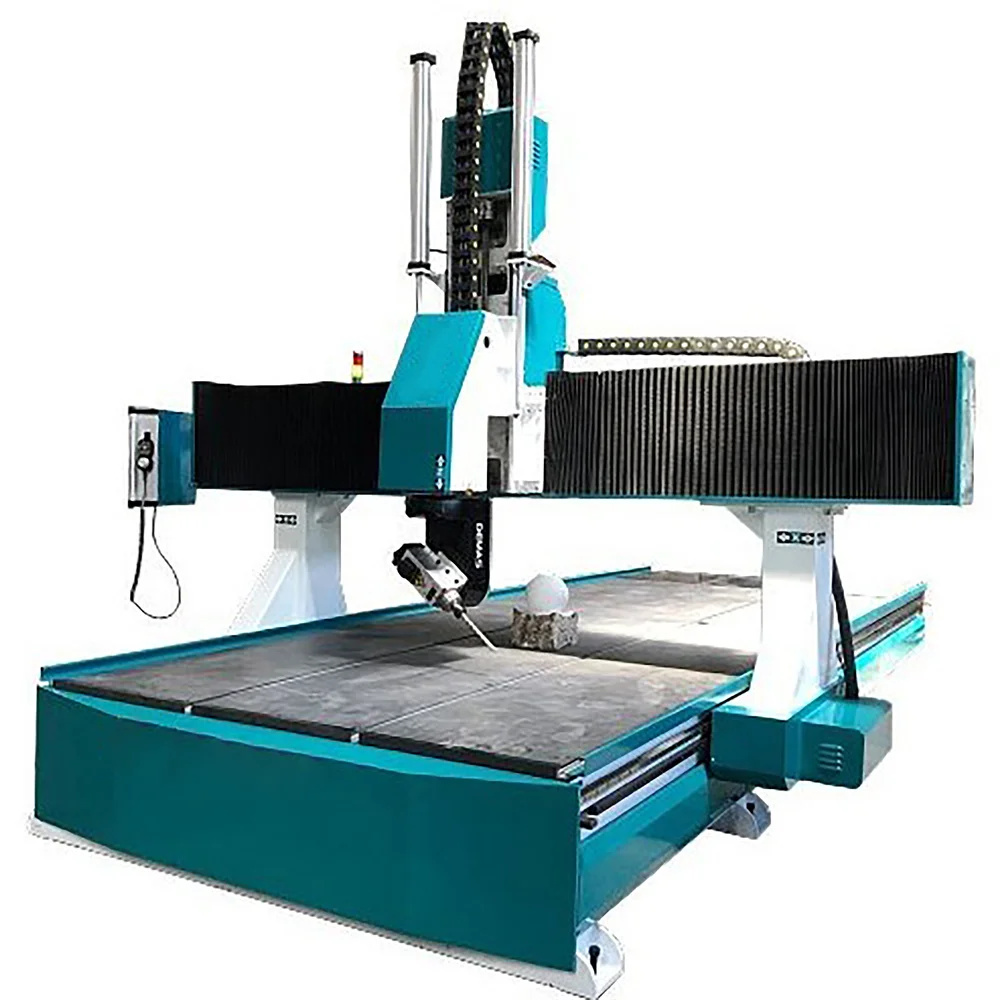

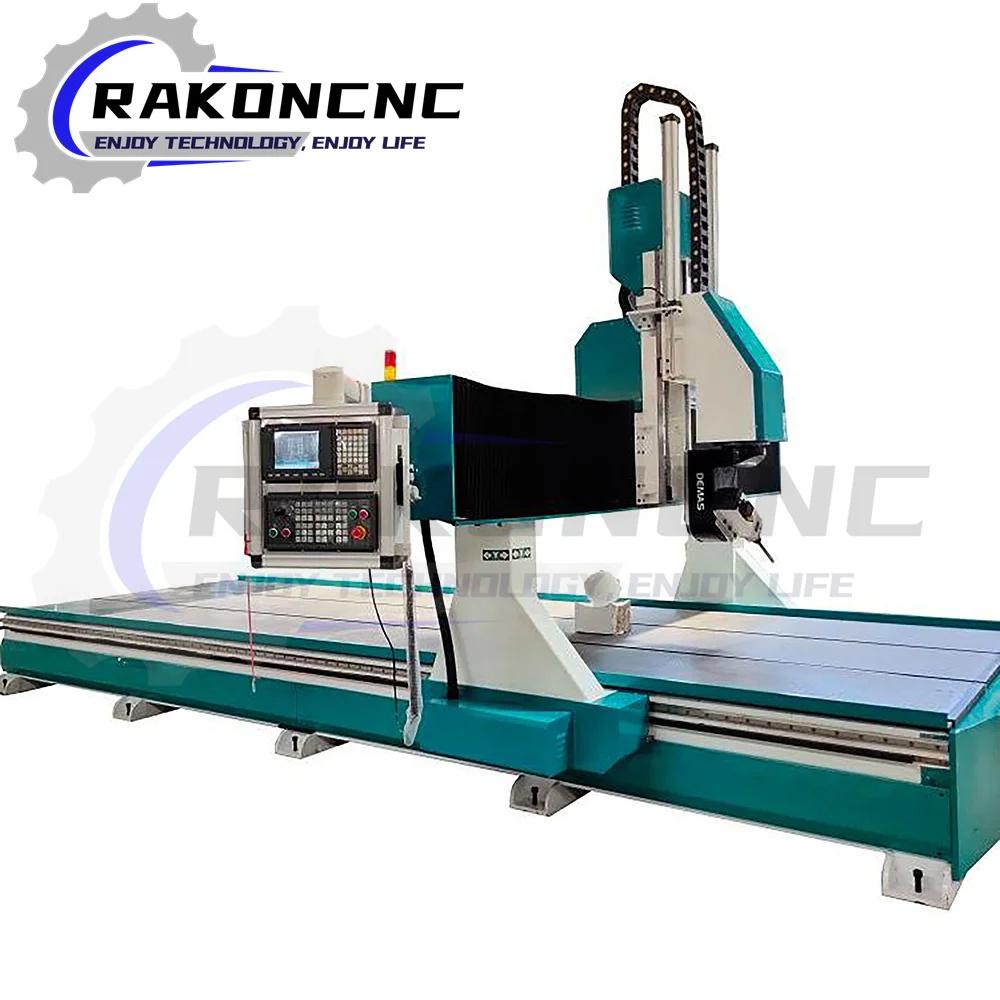

5 Axis Wood Cnc Router 1325 Styrofoam Cutting Machine

Consult immediately
Reservation Now
Detail

Product Features Of 5 Axis CNC ROUTER


1.All machine parts adopt high configuration and top quality from all over the world, to make machine with high performance and durability.

2.Heavy duty steel wall structure, keep machine with very good stability.

3.High z axis design, suitable for large scale three dimensional surfaces machining.




Products Parameter


5 AXIS CNC ROUTER

Model

RC1325 5 Axis

Working area

1300* 2500mm

Z axis height

600mm

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

X,Y,Z Repositioning Accuracy

±0.03mm

Table surface

Vacuum Table

Inverter

Big steel tube structure

Control system

5 Axis panel control system

Spindle Power

6KW air cooled spindle

spindle rotating speed

24000r/min

Guide rail

Straight square rail 25

Motor

Delta/Lesdshine servo motor optional

Max. Rapid Travel Rate

50000mm/min

Max. Working Speed

30000mm/min

working voltage

AC380V/3PH/50HZ



Main parts




Sample Display

It can process many materials,like eps foam,woods, MDF, Composite boards, Alucobond,PVC, Rigid plastics,polyester, fiberglass, Acrylic,Organic glass, Aluminum,etc.
