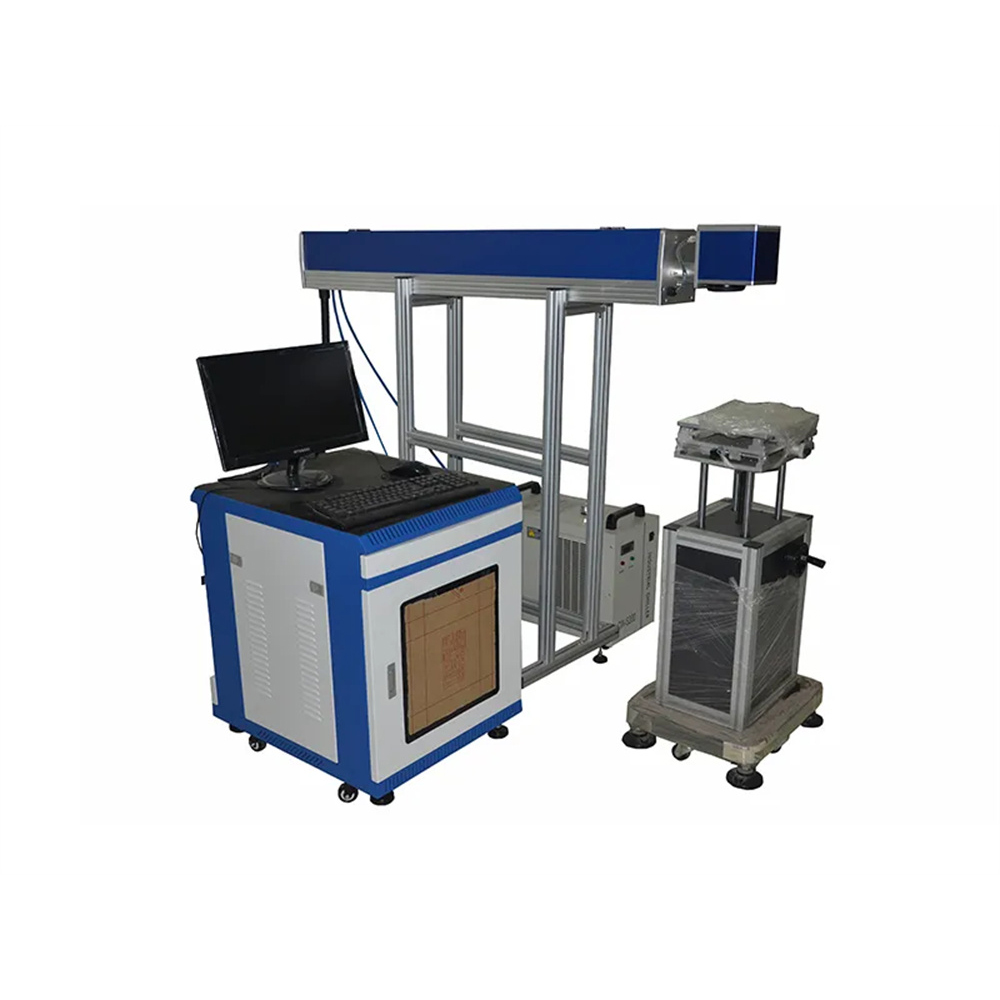

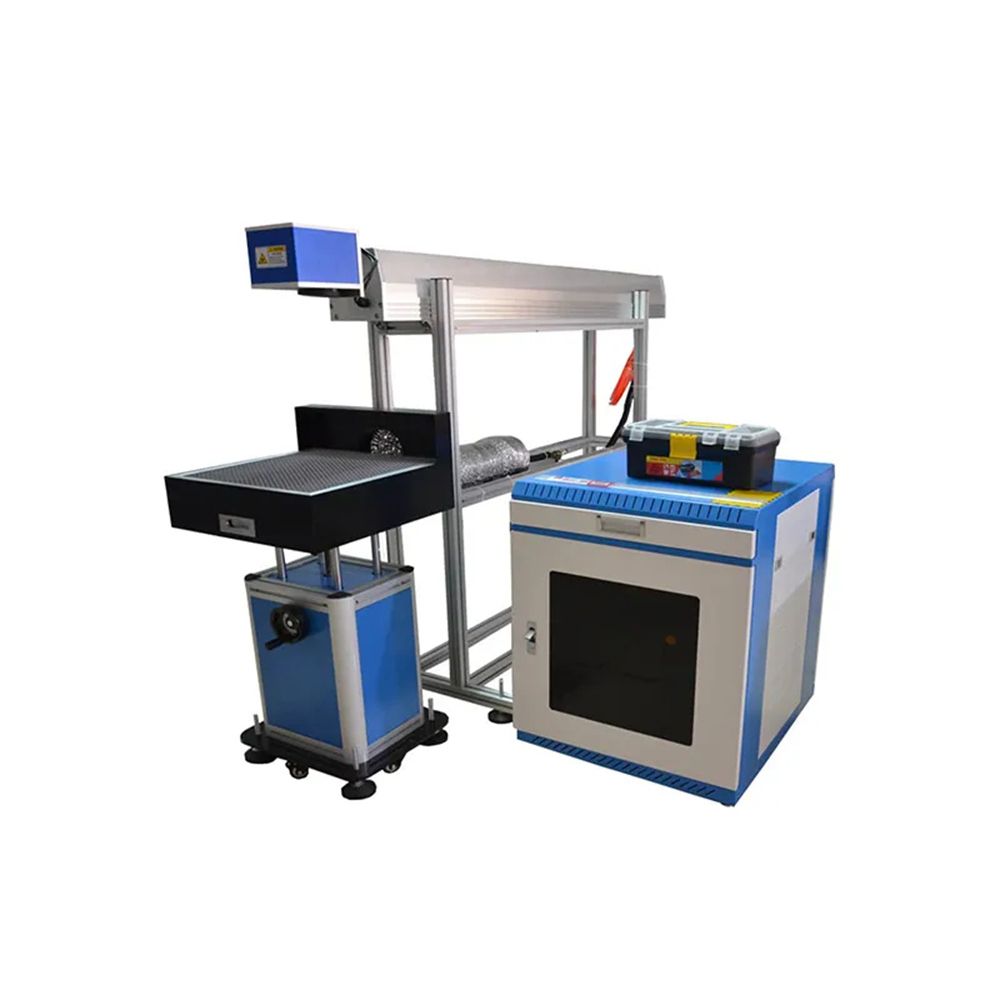

Co2 Laser Marking Machine
Co2 Laser Marking Machine
Product description
1.High Precision Reposition precision is 0.001mm.
2.High Speed High quality laser scanning system makes the marking speed up to 8000mm/ s .
3.Easy Operating Training video CD,trouble free .
4.Reci CO2 glass laser tube/ RF tube .10000 hours lifetime .
5.S&A CW5000/ CW5200 water chiller,Effective cooling laser tube, energy saving, environmental protection and high efficiency.
Machine details:
Technical Parameter:
Model | CO2 laser marking machine |
Working area | 100*100mm/ 200*200mm/ 300*300mm |
Whole machine size | 700*600*1200mm |
Laser type | CO2 laser marking , water cooling |
Laser power | 60W/80W /100W CO2 glass laser tube |
Marking depth | 0.2mm-1mm |
Marking speed | 8000mm/s |
Graphic format supported | PLT, BMP, DXF, AL, CDR, PCX, DST, GIF, DWG |
Minimum line width | 0.01mm |
Control system | Beijing JCZ controller |
Working temperature | 5℃-40℃ |
Operating humidity | 5%-95%（without condensed water） |
Software compatibility | EZ CAD |
Working voltage | AC220V 50HZ /AC110V 60HZ |
Application industries:
Electronic components, electrical components, medicine, food,
handicrafts, leather products, plastic products and other industries, etc.
Sample display
