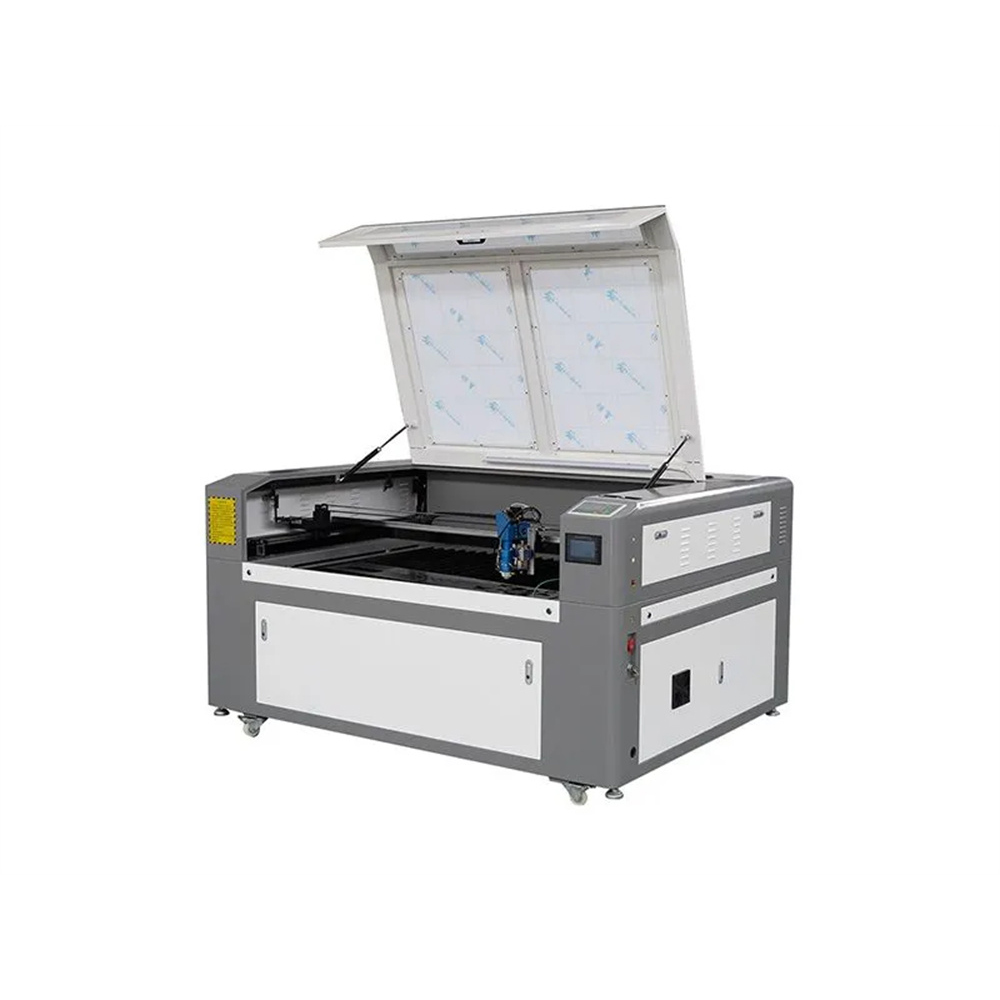

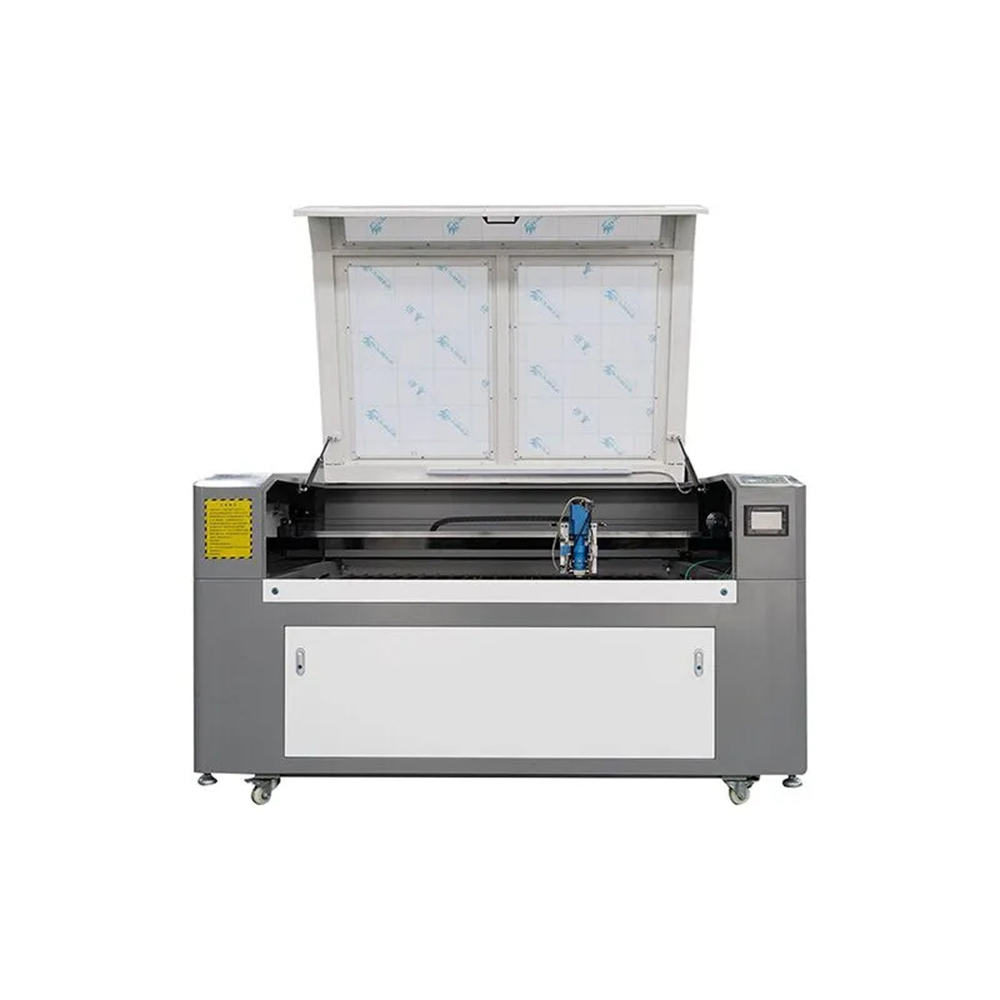

Co2 Laser Machine Non-Metal And Metal RCJ1390H
Co2 Laser Machine Non-Metal And Metal RCJ1390H
Features:
1.Cold-rolled steel welded machine bed, strong and running stable.
2.Aluminium blade table: to process hard materials like acrylic, wood and so onAnd metal materials such as carbon steel, stainless steel, galvanized sheet, etc
3.Fireproof window,more security.
4.CO2 Glass sealed laser tube China famous brand (EFR, Reci,Yongli), good beam mode stability, service timeover 8500~10000 working hours.
5. Laser good quality and stable output to prolong the laser tube service time.
6.Ruida or Leetro Controller USB interface, support online/offline working, English language system, adjustable cutting speed and power.
7.High accuracy stepper motors and drivers. Belt transmission.
8.Tiwan CSK/Hiwin Linear square guide rails, higher precision.
Machine details:
Machine details:
Model | RCJ1390H-2/ RCJ1325H-2 |
Working area | 1300*900mm/ 1300*2500mm |
Laser power | 60W+180W/280W/ 300W/ 350W |
Cutting speed | 0-50mm/s |
Repositioning accuracy | ±0.05mm |
Working voltage | AC110-220v ±10% 50HZ-60HZ |
Consuming power | less than 1000 watt |
Graphic format supported | BMP, PLT, DST, DXF, AI,CDR |
Software supported | CorelDraw, PhotoShop, AutoCAD |
Minimum letter size | English 1mm x1mm Chinese 2mm x 2mm |
Driving system | Panasonic/ Yaskawa drivers and servo motors |
laser tube cooling type | CW5200/ CW6000 industry chiller |
other auxiliary equipment | Exhaust fans and air exhaust pipe |
Working temperature | 0-45°c |
Operating humidity | 8%-95% (without condensed water) |
Laser control system | DSP control system Ruida 6332M |
Laser tube type | Sealed CO2 glass laser tube |
Applicable materials:
Nonmetal materials, like acrylic, wood, MDF, die board, and so on. Metal materials, such as stainless steel, carbon steel, etc.
Applicable industry:
Mainly used in advertising, decoration industry( stainless metal and carbon steel related products), sheet metal industry (carbon steel), packing industry(die board) and other related industry.
